ESCALA / SISMO /Analogue

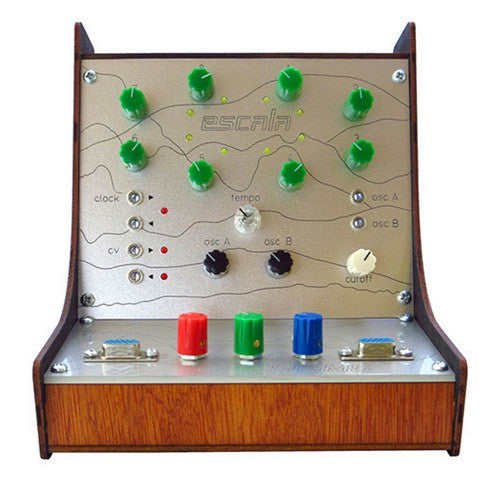

The Sismo Escala is a tool for audiovisual performance.
Combines stereo audio oscillator, sequencer, input for analog video processor and control by CV/Gate.
The front panel was specially designed by the artist Astrid Rojas.
- Polyphony - monophonic
- Oscillators - two oscillators square / pulse
- Effects - video distortion in composite edition / RGB color control in VGA Edition
- Filter - passive low cut
- Control - cv out, sync in - out
- Current draw: 12 Volts (center positive)(Not included)
- Weight: 1 kg
- Dimensions: 18cm (H) x 20cm(D) x 17cm(W)
IMPORTANT SAFETY CONSIDERATIONS!
- Do not exceed a 15VDC wall wart
- Make sure the wall wart has at least 300 to 1000mA capacity
